Touch Floor Sensing Professional Programmable Touch Screen WiFi Thermostat
Touch Floor Sensing Professional Programmable Touch Screen WiFi Thermostat
Regular price
$284.00 USD
Regular price
$355.00 USD
Sale price
$284.00 USD
Unit price
per
Features include:
-
Floor Sensor: Includes a 10k ohm floor sensor with a 10-foot (3 m) cable
-
Ease of Use: Easy setup and intuitive programmable control with built-in Install Wizard.
-
Thermostat programming is based on 6-event days. Copy one day schedule to any other day with a single operation.
- Usage Stats: Thermostat settings can be exported to web page for technical support, and power consumption is saved in detail to your user account.
Couldn't load pickup availability
Description

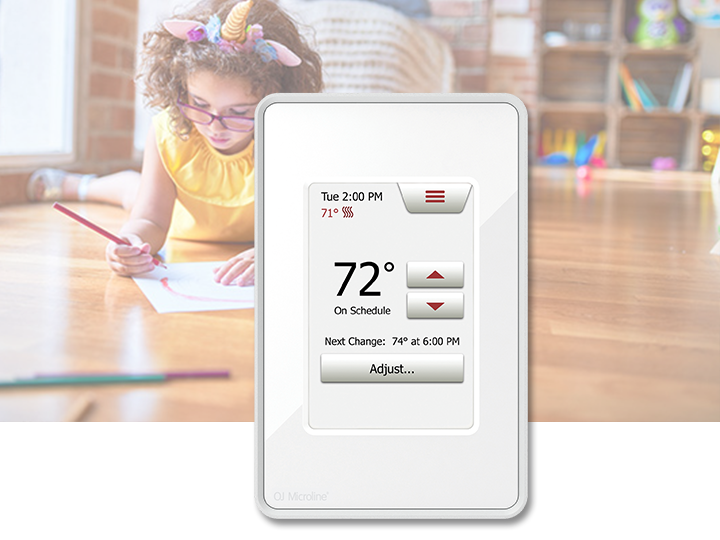

The Programmable Touch Thermostat is an “all-in-one” thermostat for electric under floor heating system control. Featuring easy interactive touch control on a 3.5-inch color screen, the thermostat includes an intuitive interface and built-in wizard. The thermostat is universally compatible with a wide range of existing floor heating sensors, and suitable for use with a wide range of different floor types, including tile, stone, laminate, vinyl, concrete, hardwood, etc. The controller provides optimal comfort temperature and minimum energy consumption, and includes a floor sensor with a 10-foot (3 m) cable. A WiFi enabled model is also available.
Features
-
Floor Sensor: Includes a 10k ohm floor sensor with a 10-foot (3 m) cable
-
Ease of Use: Easy setup and intuitive programmable control with built-in Install Wizard.
-
Thermostat programming is based on 6-event days. Copy one day schedule to any other day with a single operation.
-
WiFi Enabled: The programmable thermostat with WiFi capabilities includes built-in self-testing GFCI, and allows you to control your floor heating system with your smartphone or on the web. The custom app (iPhone and Android) provides a variety of system controls. Full-color Touchscreen: 3½-inch color screen with easy interactive touch control.
-
Usage Stats: Thermostat settings can be exported to web page for technical support, and power consumption is saved in detail to your user account.
-
Compatibility: Universal compatibility with existing floor heating sensors.
-
Versatile: Suitable for use with a wide range of different floor types, including tile, stone, laminate, vinyl, concrete, hardwood, etc.
-
Battery Backup: 5-year battery backup of clock and calendar
-
QR code support: Patent pending
-
GFCI: Built-in self-testing GFCI
-
Child lock: Prevents misuse and efficiency with the "child-lock" function
-
Supported languages: US English, Canadian French, Mexican Spanish
-
Three control modes: • Ambient temperature with floor protection • Floor temperature with floor protection • Ambient temperature without floor protection (regulator mode w/o sensor).
-
Two date formats: mmddyyyy, ddmmyyyy
-
Two time formats: 24 hours, 12 hours
Heated Area Information
Specification
| Supply Voltage: | 120/208/240 VAC, 50/60Hz |
| Load (Output relay) | 15 A maximum (resistive load) |
| Maximum Power Load |
|
| Temperature Range: | +41°F to 104°F (+5° to +40°C) |
| Temperature Limit Range: | +41°F to 104°F (+5° to +40°C) |
| Floor Limit Range: | Floor Limit Range: +41°F to 104°F (+5° to +40°C) |
| Ambient Temperature Range: | +32 to +104°F (0 to +40°C) |
| Floor protection laminate/wood: | 82°F(27.5°C) |
| Floor protection tile: | 88°F (31°C) |
| On/Off differential | 0.7°F (0.4°C) |
| Regulation principle | PWM / PI |
| Housing | IP20 |
| Floor sensor type | NTC (10 KΩ) 15 ft. (4.5 m.) |
| Dimensions (H/W/D) | 5.1x3.2x0.8 inch (130x82x20mm) |
| Wall box (H/W/D) | 3x2x2 inches |
| Display | 3.5-inches, 65k color |
| Touch | Resistive |
| Programmable | events 1-6-event per day |
| GFCI | Class A (5 mA trip level) |
| WLAN | 802.11 b/g/n WLAN module. port 80 access |
| Approvals | CSA, UL |
| Warranty | 2 years |
