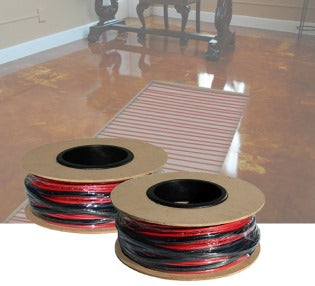

Radiant Floor Heating Cable

Radiant Floor Heating Cable

$150.00 USD
$150.00 USD $150.00 USD
Sale Sold out
Enjoy an additional ... (Special Offer) off! Final price: ...

Warm up your space with flexible and efficient radiant heat floor cable—perfect for any room in your home. This ultra-durable cable delivers consistent performance across tile, stone, laminate, and LVP flooring, making it ideal for everything from a cozy heated bathroom floor to expansive radiant heated floors throughout your home. Whether you're upgrading a remodel or starting fresh, this easy-to-install cable is designed for DIY-friendly installs and professional results. Enjoy the comfort of electric underfloor heating while reducing energy waste, all backed by a 25-year warranty.

Voltage
Length (ft)
Need Help: Call at +(801) 948-7500
Need Quote: Get One Here
Tags: cable, floor, heating, radiant, tools, wire,
View full details
Description Features Specification Product Literature Related Product FAQs Reviews

Description

This twin-conductor electric floor heating cable is engineered for consistent output and safe, long-lasting performance. Operating at 120 V or 240 V, it delivers 12 watts per square foot (130 W/m² ±10%) when installed at 3-inch spacing. A compact diameter (3.2–4.2 mm) allows for tight bends, making it ideal for flexible layout in custom floor plans. Constructed with durable fluoropolymer inner insulation and high-temp PVC outer sheathing, the cable is rated for ambient temperatures up to 104 °F (40 °C). It comes pre-terminated with 10-foot cold leads and meets all relevant safety certifications, including UL 1673, IEC 60335, and CSA-C22.2—making it a trusted choice for your floor heating system.

Features

  • Consistent 12 W/sq ft Output – Balanced heat for reliable comfort
  • 120 V or 240 V Options – Designed for a wide range of floor heating systems
  • Ultra-Slim Profile – Compact diameter allows tight, 1-inch radius bends
  • Compatible with Many Floor Types – Works under tile, stone, laminate, LVP, and more
  • Ideal for DIY or Pro Installations – Perfect for custom layouts in any room
  • Heats Up Quickly and Evenly – Great for radiant heated floors of all sizes
  • Durable Double Insulation – Fluoropolymer + PVC layers for long-term protection
  • Safe for Wet Areas – A smart solution for heated bathroom floors
  • 10-ft Cold Lead Included – Simple connections to thermostat or junction box
  • Certified and Safe – Meets UL, CSA, and IEC standards
  • Backed by a 25-Year Warranty – Built to last and supported for decades

Heated Area Information

Recommended Controls

  • Update this to the built in products feature
  • LED WiFi TOUCH Thermostat
  • Programmable TOUCH Thermostat

Specification

Cable Construction Twin-conductor, single-point connection
Rated Voltage 120 V, 240 V
Output 12 W/ft2 (130 W/m2) +10% (at recommended spacing)
Recommended Spacing 3-inches (76.2 mm)
Bending Diameter 1-inch (25.4 mm)
Cable Diameter 1/8 to 1/6-inch (3.2 mm-4.2 mm)
Conductor Insulation Fluoropolymer
Outer Insulation High Temperature PVC
Max. Ambient Temperature 104°F (40°C)
Min. Installation Temperature 40°F (5°C)
Cold lead (length) 2-wire 16 AWG plus ground braid; 10 feet (3 m)
Standards Meets all test requirements of IEC 60335, CAN/CSA-C22.2 No. 130-03, UL 1673
Approvals Certified by Intertek SEMKO against relevant IEC/EN 60335, UL and GOST Standard,

Literature

Installation Manual

Product Sheet

Data Sheet

FAQs

What are the differences between the Programmable Touch Thermostat LED Wi-Fi and the Programmable Standard Thermostat?

The Programmable Touch Thermostat features a sleek, low profile design, an LED screen, Wi-Fi, app-based access for control of your radiant floor heating anywhere. Integrated voice control is included and ready to work with Amazon Alexa or Google Assistant. You can also create custom schedules for multiple weeks at a time. In addition, the LED thermostat comes with a 15-foot NTC sensor for precise temperature regulation and can operate on 120V/208V/240V power supplies.

Is connecting the Programmable Touch Thermostat LED Wi-Fi to my radiant heat system difficult?

No. The thermostat’s included app makes installation a breeze. The app will guide you through each step of installation and assure correct installation and operation throughout the life of your floor heating system.

What programmable modes does the thermostat feature?

The Programmable Standard Thermostat includes both operational and safety modes for flexible, reliable control. It offers three operational modes—ambient controlled, floor controlled, or ambient only—allowing you to customize how the temperature is monitored. For added protection and convenience, it also features anti-freeze, open-window detection, floor protection, vacation mode, and a child lock to prevent tampering by curious kids. All modes are simple to navigate on the thermostat’s bright 3.5" color touch screen.
