Radiant Floor Heating Mat
Radiant Floor Heating Mat
Regular price
$180.00 USD
Regular price
$225.00 USD
Sale price
$180.00 USD
Unit price
per
Product Features:
- 25-year limited warranty against manufacturing defects
- As low as $10 per sq.ft
- 15 watts per sq.ft
- Available in 120/240 VAC
Couldn't load pickup availability
Need Help: Call at +(801) 948-7500
Need Quote: Get One Here
Tags: cable, floor, heating, radiant, tools,
Description

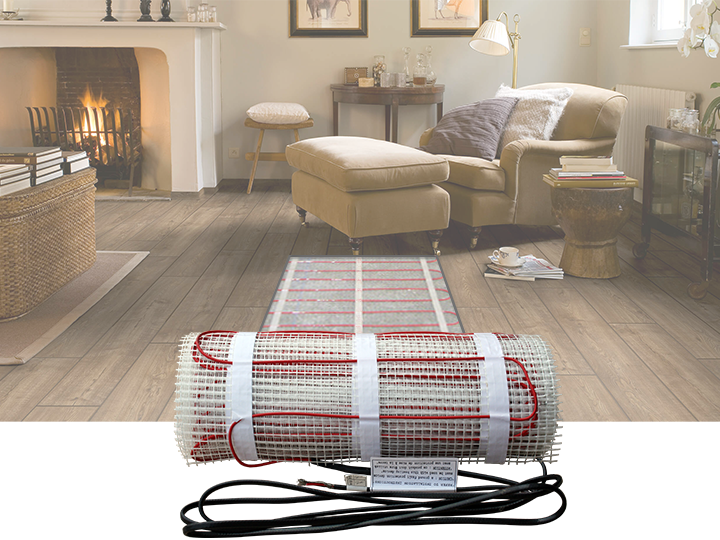

These industry-leading floor heating mats feature thin heat cable that is pre-spaced and affixed on a flexible, mesh backing. The mat has an adhesive backing so it can be easily rolled out and secured to the subfloor. The mats facilitate quick “roll-out” installation while ensuring proper cable spacing. The hot and cold lead junctions are uniquely designed to simplify and ensure the proper installation of the cable.
Features
-
Single-point connection
-
Twin-conductor cable
-
Safety approved for wet locations
-
Durable construction and flexible installation
-
Affixed to mat with adhesive backing
-
UL listed in the U.S. and Canada
-
25-year limited warranty against manufacturing defects
Heated Area Information
Recommended Controls
-
Use Shopify built in products
-
LED WiFi TOUCH Thermostat
-
Programmable TOUCH Thermostat
Specification
| Cable Construction | Twin-conductor, single-point connection |
| Rated Voltage | 120 V, 240 V |
| Output | 12 W/ft2 (130 W/m2 )±10% (at recommended spacing) |
| Recommended Spacing | 3-inches (76.2 mm) |
| Bending Diameter | 1-inch (25.4 mm) |
| Cable Diameter | 1/8 to 1/6-inch (3.2 mm-4.2 mm) |
| Conductor Insulation | Fluoropolymer |
| Outer Insulation | High Temperature PVC |
| Max. Ambient Temperature | 104°F (40°C) |
| Min. Installation Temperature | 40°F (5°C) |
| Cold lead (length) | 2-wire 16 AWG plus ground braid; 10 feet (3 m) |
| Standards | Meets all test requirements of IEC 60335, CAN/CSA – C22.2 No. 130-03, UL 1673. |
| Approvals | Certified by Intertek SEMKO against relevant IEC / EN 60335, UL and GOST Standard. |
